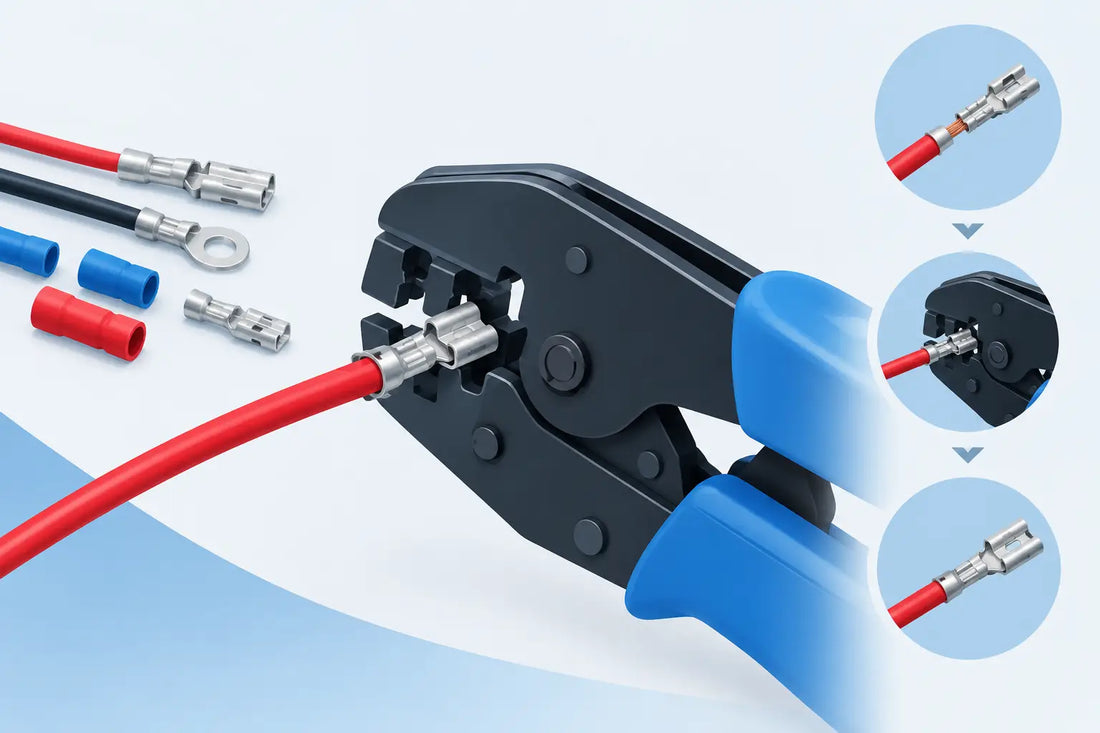

How to Crimp Automotive Terminals Properly

A pull test takes seconds. Finding an intermittent open circuit behind a dashboard, under a seat or on a lorry chassis can take hours. Knowing how to crimp automotive terminals properly is therefore not a minor wiring skill: it is what separates a durable repair from a comeback caused by vibration, corrosion or a loose conductor.

A good crimp forms a cold-welded mechanical and electrical connection between the terminal barrel and the copper strands. It should hold firmly, conduct with minimal resistance and support the cable without cutting into its insulation. The correct result depends on matching the terminal, cable size and crimping tool, then checking the finished joint before it goes back into the loom.

Start by matching the terminal to the job

Do not select a terminal by appearance alone. Automotive terminals may be open-barrel or closed-barrel, insulated or uninsulated, heat-shrink sealed, blade, ring, bullet, spade, pin or connector-specific. Each needs a compatible crimp profile.

For routine repair work, pre-insulated terminals are quick and practical where the connection is protected from moisture and movement. The coloured insulation is commonly used as a cable-size guide: red for smaller conductors, blue for medium sizes and yellow for larger sizes. However, colour coding is not a substitute for checking the terminal specification and the actual cable cross-section.

Heat-shrink terminals are often the better choice for exterior lighting, trailer wiring, wheel-arch repairs, marine-adjacent work and other exposed areas. Once heated, the sleeve shrinks around the cable and adhesive-lined types help exclude water. They cost more and require a heat gun, but can prevent corrosion where an ordinary insulated terminal would eventually fail.

Open-barrel terminals are common inside OEM-style connector housings. They have separate wings for the conductor and insulation support, and usually require a dedicated open-barrel crimp tool. Trying to close these wings with pliers or a general-purpose insulated-terminal crimper produces an inconsistent result and can stop the terminal locking correctly into its housing.

The tools needed to crimp automotive terminals

The right crimping tool is as important as the terminal itself. A ratchet crimper applies controlled pressure and generally will not release until the crimp cycle is completed. This gives a more repeatable joint than combination pliers, especially when several repairs are being made across a vehicle or fleet.

Choose dies that match the terminal style. A red-blue-yellow ratchet crimper suits many pre-insulated terminals. A non-insulated crimper has a different jaw profile, while open-barrel terminals need dies shaped to roll the wings around the strands rather than simply flatten them. For larger battery, starter and earth cables, use a heavy-duty hex, indent or hydraulic lug crimper specified for the cable and lug size.

You will also need a cable cutter and a proper stripping tool. Side cutters can nick strands, while stripping with a knife can remove copper or score insulation. Both faults reduce the conductor area and create a weak point beside the terminal.

Keep a small selection of heat-shrink tubing, terminal boots and loom tape available where the repair needs extra protection. These are not alternatives to a correct crimp, but they help manage strain, abrasion and moisture once the connection is sound.

How to crimp automotive terminals step by step

Before cutting anything, identify the original cable size and terminal type. If the wire has overheated, corroded green or black, or suffered repeated flexing, cut back to clean, bright copper. Joining a new terminal to damaged conductor only moves the failure point a few centimetres down the loom.

1. Disconnect power and prepare the cable

Isolate the relevant circuit before working, particularly around starter cables, permanent lives, airbag systems or hybrid and EV components. Follow the vehicle manufacturer’s isolation procedure for high-voltage systems. Orange HV cable, associated connectors and EV safety systems are not general wiring-repair territory unless the technician is trained and equipped for that work.

Cut the cable square, then strip only the length needed for the terminal barrel. As a rule, the exposed conductor should fill the metal barrel without copper protruding from the front or leaving a gap at the rear. Most small terminals need only a few millimetres stripped, but use the terminal manufacturer’s dimensions where provided.

Inspect the stripped end. The strands should be clean, complete and lightly twisted in their natural lay. Do not tin the wire with solder before crimping. Solder can wick up the strands, create a rigid section and make the cable more susceptible to fatigue under vibration. A correctly made crimp does not need solder to carry current.

2. Set the terminal in the correct die

For a pre-insulated terminal, position the metal barrel in the corresponding colour-coded die. The crimping jaws should compress the metal sleeve around the conductor, not crush the plastic insulation. On many tools, the seam in the terminal barrel should face the shaped side of the die so the force closes it correctly. Check the instructions for the tool and terminal combination if the orientation is unclear.

For open-barrel terminals, place the terminal so the smaller conductor wings are aligned with the conductor crimp section and the larger rear wings align with the insulation support section. The aim is to roll both sets of wings inward. The conductor wings should grip the copper strands; the rear wings should support the cable insulation without piercing it.

Part-close the ratchet tool if it helps hold the terminal in place, then feed the wire fully into the barrel. On an insulated terminal, the insulation should sit close to the terminal body and the stripped copper should be entirely inside the metal section.

3. Complete the crimp in one controlled action

Squeeze the handles through the full ratchet cycle. Avoid stopping halfway and repositioning unless the tool is specifically designed for adjustment. Partial or repeated crushing can distort the barrel and damage strands.

When using a non-ratchet tool, apply firm, even pressure and check that the die has formed the profile intended for that terminal. The goal is not maximum force. An over-crimp can cut strands, split the barrel or damage the insulation; an under-crimp leaves air gaps and allows movement. Both can create heat and voltage drop under load.

If using a heat-shrink terminal, shrink it only after the mechanical crimp has passed inspection. Use a heat gun with controlled heat, moving it around the sleeve until it contracts evenly. Do not use an open flame. It can scorch insulation, damage nearby trim and leave uneven sealing.

Inspect the crimp before refitting the loom

Visual inspection catches many faults immediately. The terminal should be centred, undamaged and properly formed. There should be no loose strands, no copper hanging out of the front, no split insulation and no crushed plastic where the tool should have contacted metal.

Then carry out a firm pull test. Hold the terminal in one hand and the cable in the other, and apply a straight, controlled pull. You are checking retention, not trying to rip the connection apart. If the cable moves, rotates freely in the barrel or pulls out, cut the terminal off and start again. Do not attempt to re-crimp a damaged terminal.

For critical circuits, verify the repair electrically as well. A continuity check confirms the path exists, but a voltage-drop test under load is more useful for high-current circuits such as lamps, blower motors, fuel pumps, starter feeds and earth straps. A connection can show continuity on a meter yet develop excessive resistance when current is flowing.

Common crimping faults in vehicle wiring

The most common error is using the wrong terminal size for the cable. A terminal that is too large may feel tight after crushing but will not grip the conductor consistently. One that is too small can cut strands or prevent the wire entering fully. Measure cable cross-section where there is doubt, particularly on older repairs where the original wire may not be standard.

Another regular issue is using universal insulated terminals where the vehicle connector requires an OEM-style open-barrel contact. The wire may be electrically connected, but the repair can be bulky, unsealed and impossible to lock into the connector body. Match the contact system rather than forcing a generic solution.

Poor strain relief also shortens repair life. A good terminal cannot compensate for a loom that is left tight across a sharp bracket, unsupported near a tailgate hinge or rubbing against a moving component. Route the cable as the original loom intended, protect it with conduit where needed and secure it without overtightening cable ties.

Corrosion deserves the same attention. If water has entered a connector, inspect the mating terminal and seal as well as the wire side. Replacing one green terminal while leaving contaminated connector pins in place often leads to another fault soon afterwards.

Build repeatability into workshop repairs

For occasional roadside work, a compact ratchet crimper and a carefully chosen assortment of insulated and heat-shrink terminals will cover many routine repairs. For a busy workshop, it pays to stock terminals by type, cable range and intended environment, alongside dedicated crimpers for open-barrel contacts and heavier lugs. It reduces improvisation when a vehicle is occupying a bay.

Workshop Hub supplies electrical consumables and automotive tools suited to everyday repair and replenishment, from pre-insulated terminals and connectors to cable management and specialist workshop equipment. The useful approach is to standardise on terminal ranges that match the tools already in use, so every technician can produce the same dependable result.

A terminal crimp may be hidden under a dash, inside a lamp housing or beneath a chassis rail, but it is still part of the vehicle’s working system. Take the extra minute to select the correct terminal, use the right die and test the joint before closing the loom. That minute is usually cheaper than diagnosing the same fault twice.
